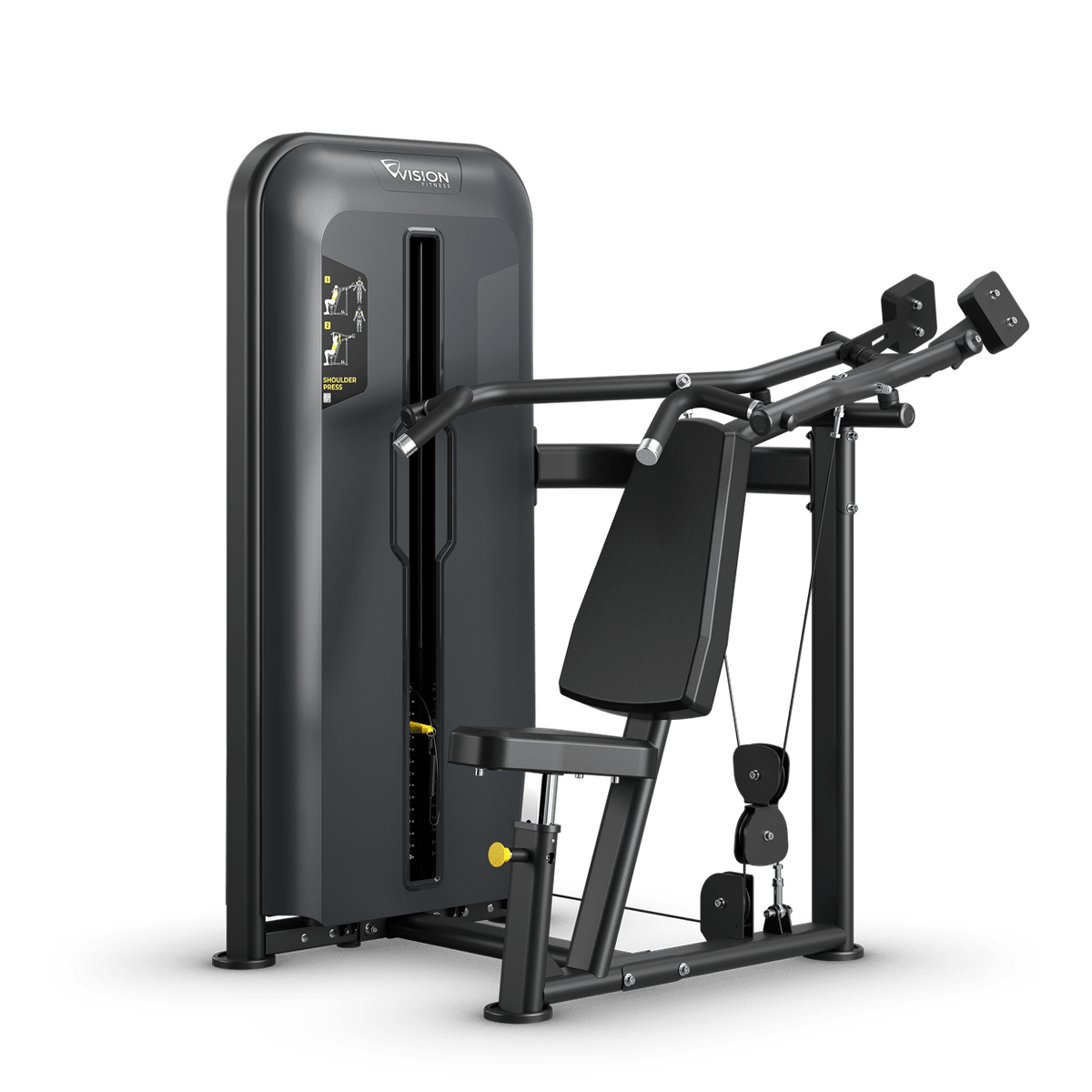

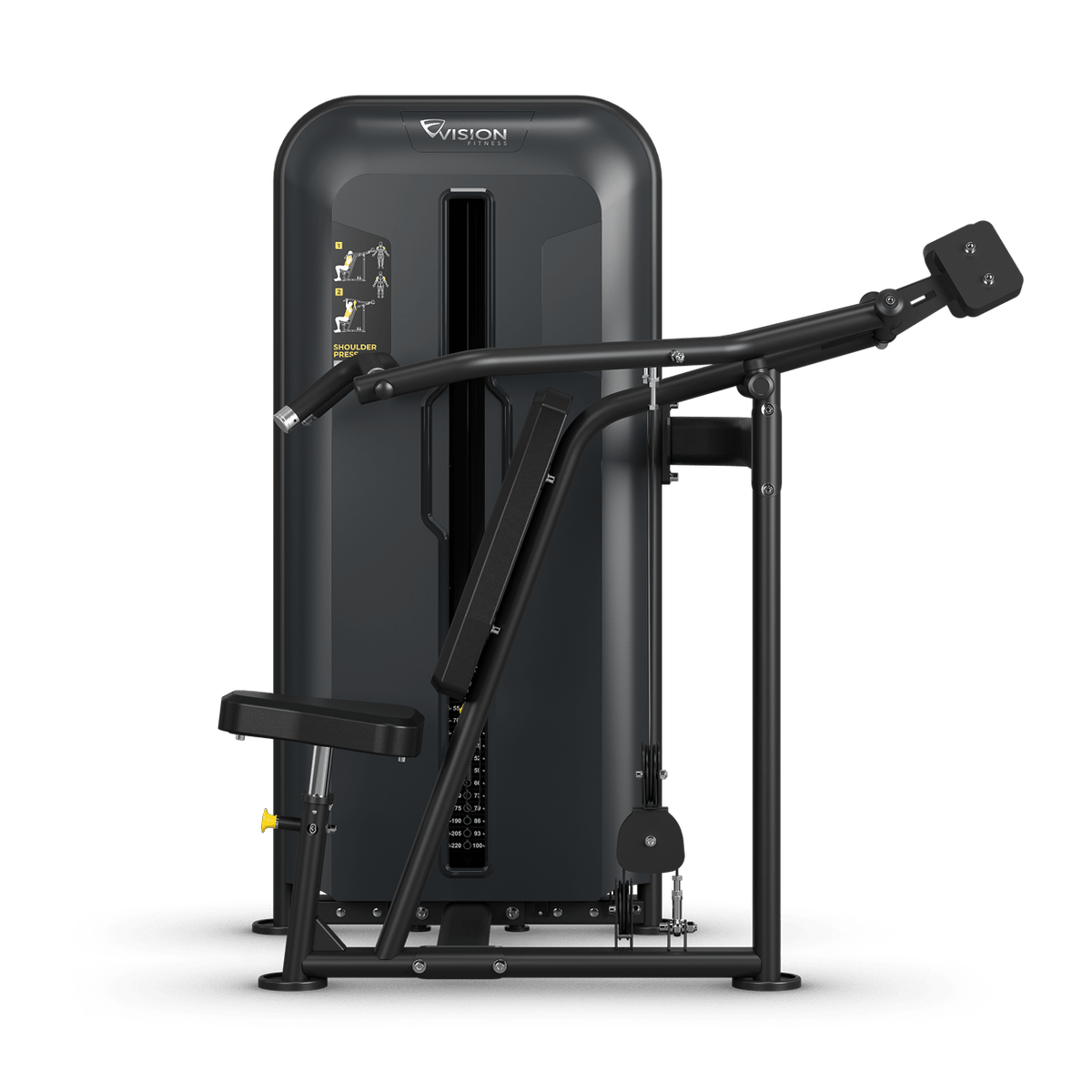

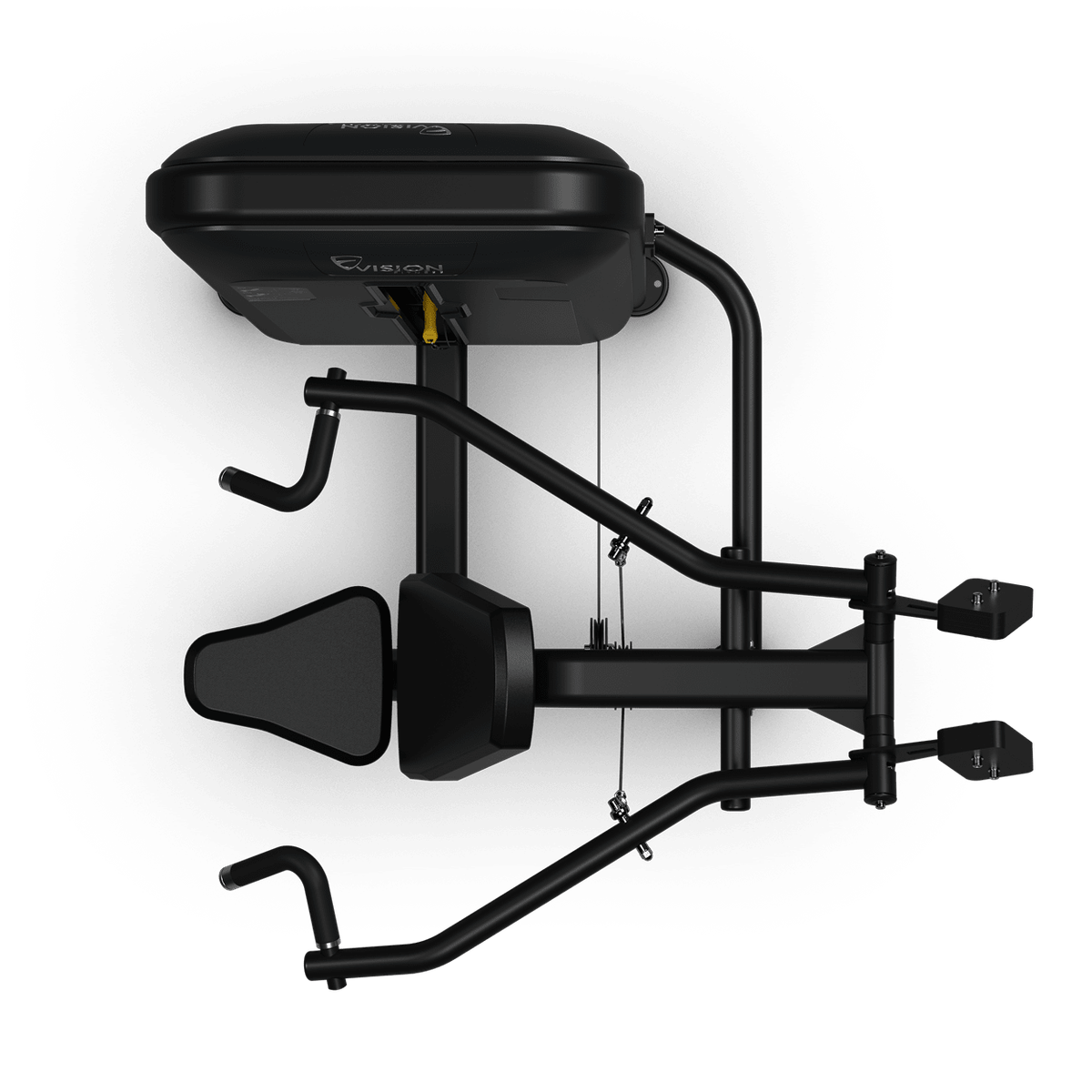

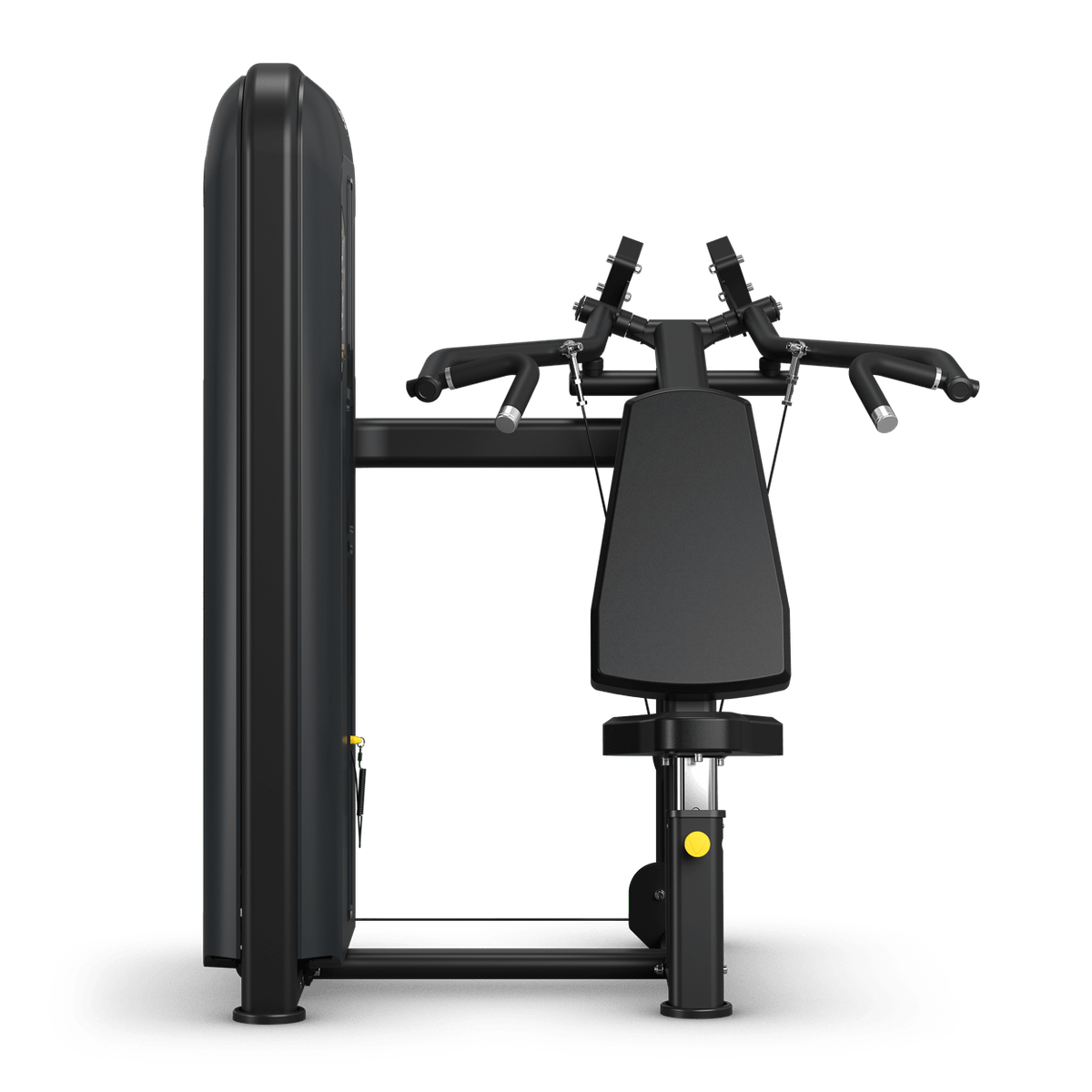

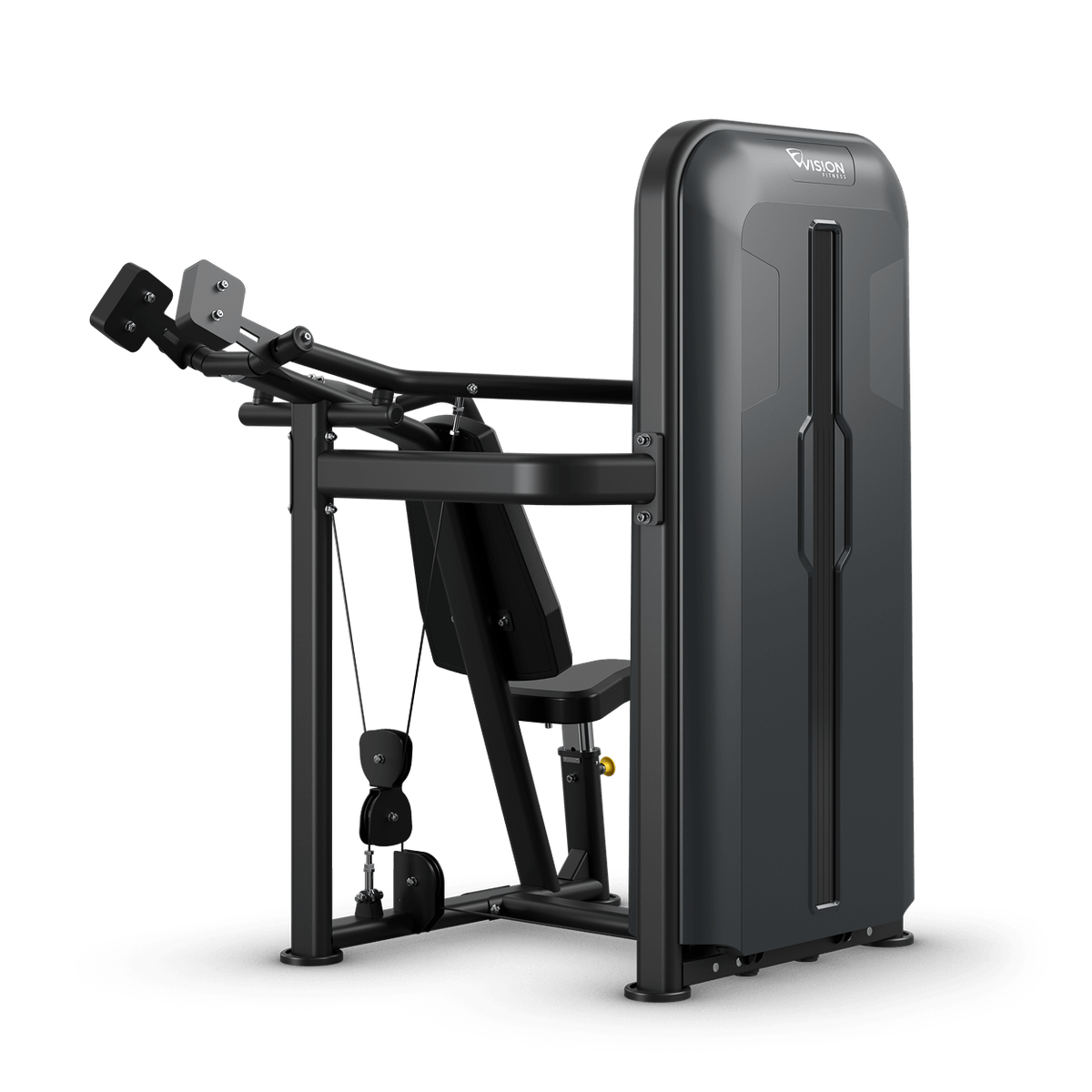

The Vision Access Series Converging Shoulder Press (V-ACS-SL-23) offers gym operators a bulletproof overhead pressing solution that combines modern style with extreme durability. Built around an industrial-grade structural steel framework, the entire chassis is treated with a proprietary two-coat electrostatic matte black powder process that strongly resists chips, deep scratches, and sweat-induced oxidation. The contoured seat and supportive vertical back elements feature polymer foam padding backed by reinforced wood panels, wrapped in double-stitched commercial vinyl upholstery to easily handle high daily member throughput.
Frictionless mechanical operation is standard across the Access Series line. The V-ACS-SL-23 utilizes an internally lubricated, nylon-coated high-tensile steel cable transmission architecture that routes smoothly over heavy-duty pulleys and sealed precision bearings. This design ensures an ultra-silent stroke and consistent load resistance from the initial press to the final lockout, preventing dominant-side bias and allowing users to isolate their shoulders without structural sticking points.
Features & Benefits
-
Independent Bilateral Pressing: Left and right arms operate completely independently, enabling balanced strength development and allowing personal trainers to program effective single-arm training variations.
-
Multi-Position Ergonomic Grips: Features non-slip, textured handles that provide both standard horizontal and neutral vertical hand placements to accommodate lifters with limited shoulder mobility.
-
Consistent Visual Stack Height: Maintains a uniform profile height that matches other stations in the Access Series lineup, helping fitness managers create an organized, premium floor layout.
-
Color-Coded Touchpoints: All pivot points and adjustment pins are distinctively colored, making it exceptionally simple for new members to set up and start their workouts without confusion.
-
High-Visibility Coaching Placards: Mounted clearly at eye level, high-contrast visual guides offer yellow-coded upper body muscle graphics, clear path lines, and a scannable QR code for instant video walkthroughs.
Specifications
-
Model Designation: V-ACS-SL-23 / V-ACS-SL23 (Access Series)
-
Machine Type: Selectorized Converging Overhead Shoulder Press
-
Frame Structure: Robotically welded heavy-gauge structural steel frame with built-in floor anchoring points
-
Frame Finish & Color: Proprietary two-coat powder process in Matte Black
-
Cable Transmission: Internally lubricated, high-strength military-spec steel cables and fittings
-
Total Weight Stack Capacity: 100 kg (220 lbs) solid steel plates
-
Weight Plate Increments: 6.8 kg (15 lbs) per weight plate slice
-
Assembled Blueprint Dimensions (L x W x H): 150.9 cm x 142.9 cm x 172.5 cm (59.4″ x 56.3″ x 67.9″)
-
Maximum In-Use Dimensions (L x W x H): 151.0 cm x 142.9 cm x 202.9 cm (59.4″ x 56.3″ x 79.9″)
-
Net Unit Weight: 229 kg (505 lbs) including the internal weight stack
-
Maximum Occupant Capacity: Rated for a maximum user weight of 150 kg (330 lbs)
-
Upgrade Compatibility: Compatible with the optional 2.3 kg (5 lbs) Add-on Incremental Weight Kit (V-ACS-SL-IW)
Training Programs & Feedback
-
Anterior and Medial Deltoid Overload: Safely isolates the primary shoulder driving networks to muscular failure without the balancing hazards and core fatigue common with loose free barbells.
-
Joint-Friendly Neutral Grip Pressing: Utilizing the vertical handles redirects the pressing trajectory into the scapular plane, drastically reducing joint strain for users recovering from past injuries.
-
Unilateral Strength Balancing: Running single-arm overhead presses helps athletes rapidly identify and correct left-to-right muscular imbalances, improving overall pressing symmetry.
