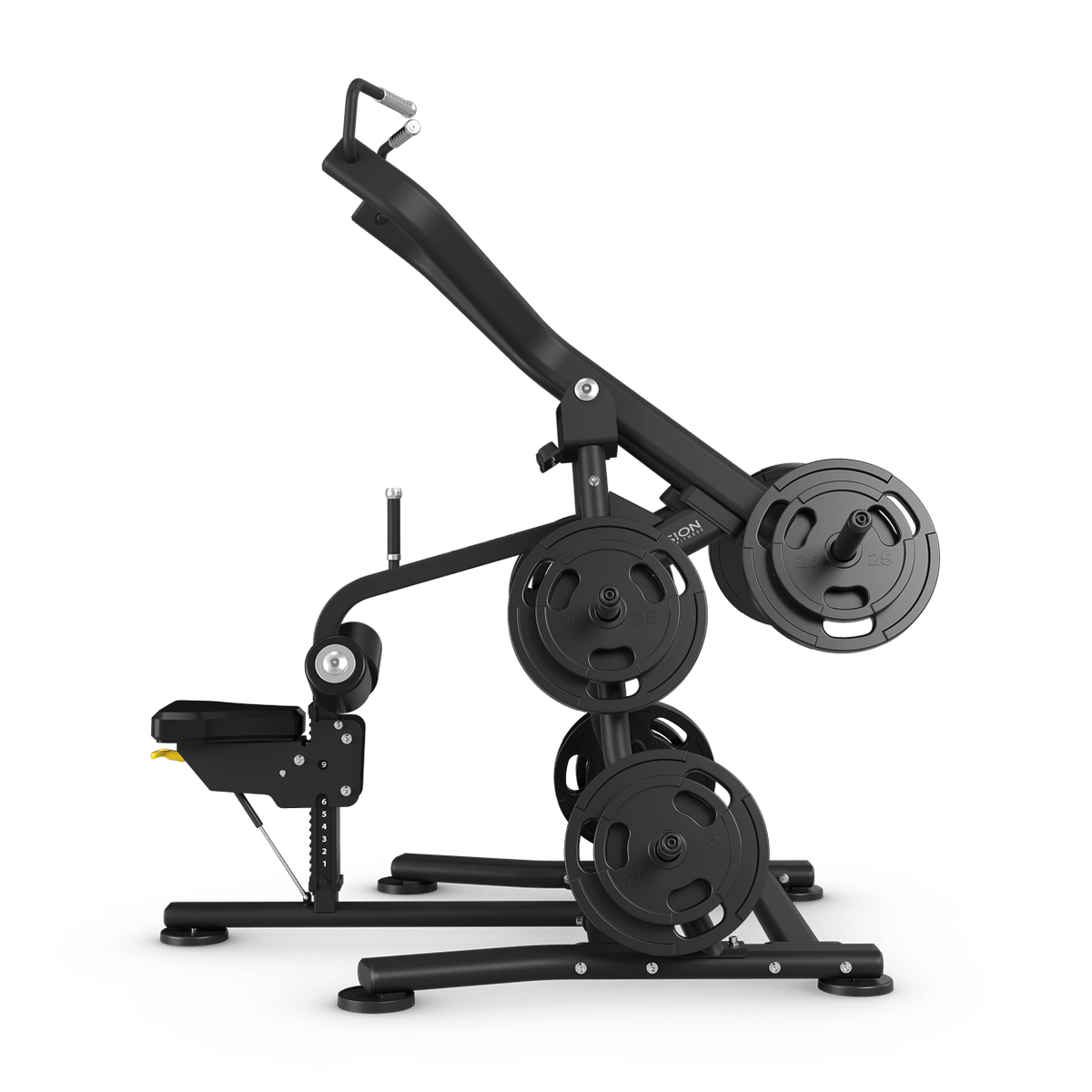

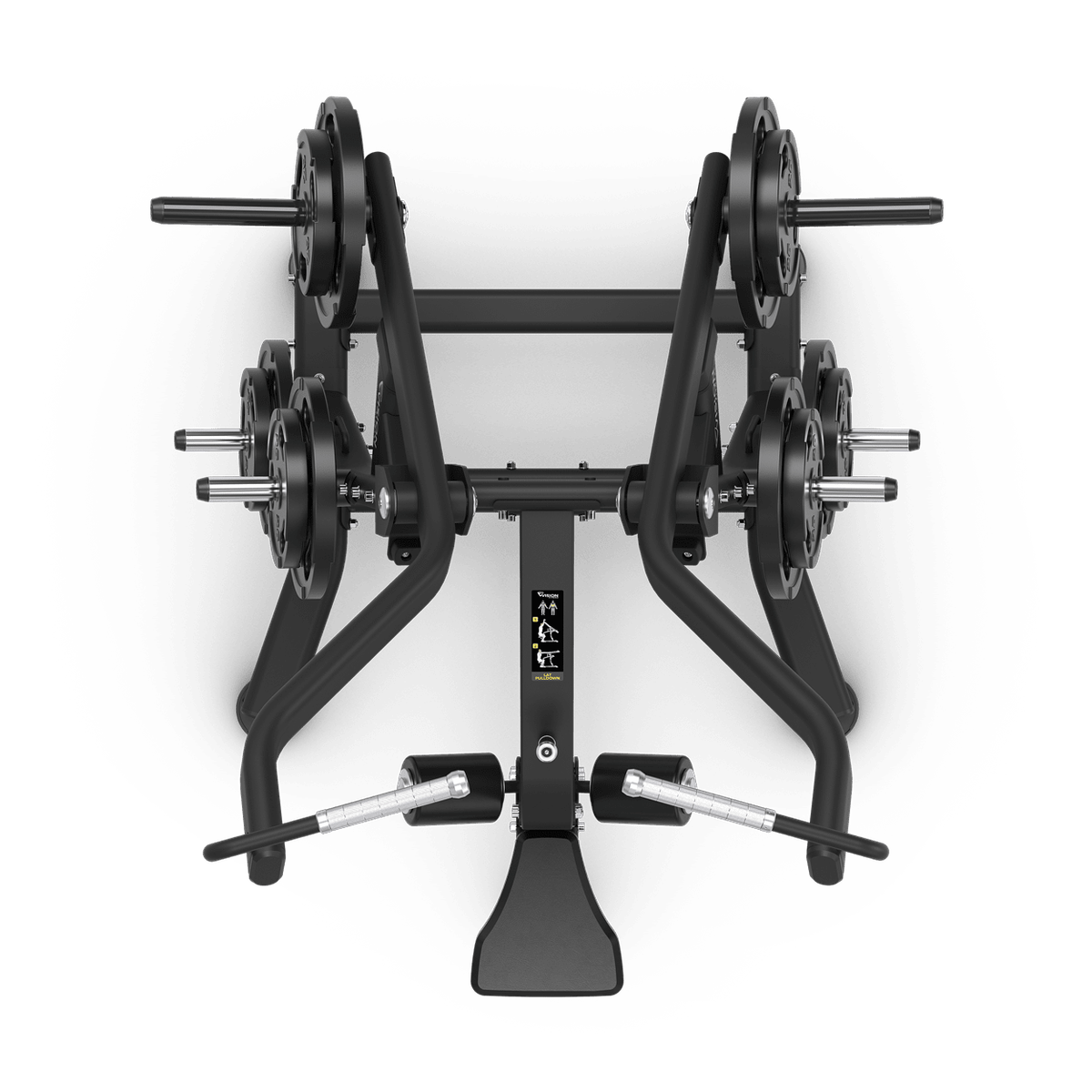

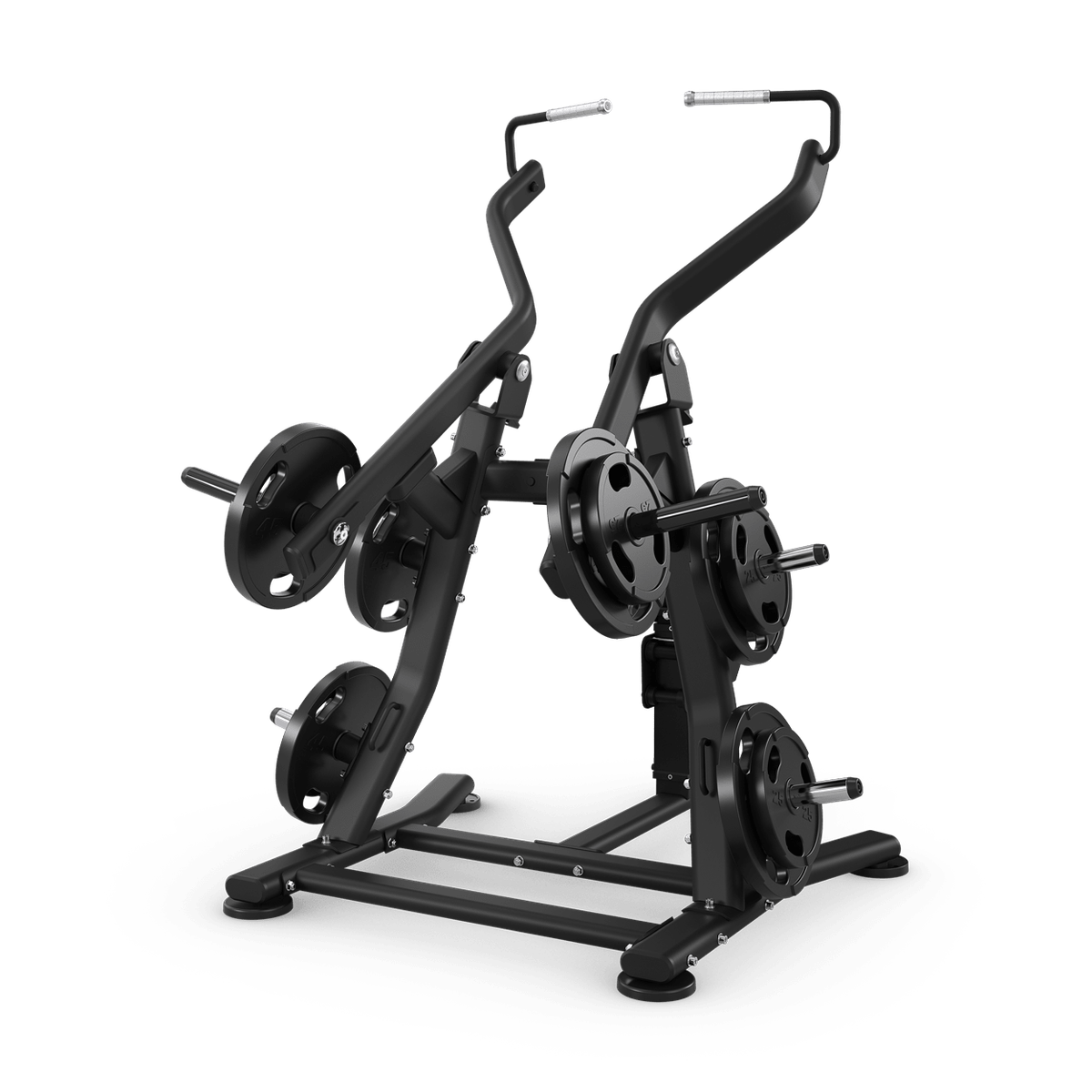

The Vision Keystone Series Lat Pulldown (VST700PL33) is a masterclass in commercial plate-loaded strength equipment. Built to serve heavy-traffic fitness clubs, collegiate weight rooms, and elite performance centers, the machine is anchored by a massive heavy-gauge steel frame. It is finished with a proprietary two-layer electrostatic matte black powder coat that powerfully resists scratching, chipping, and sweat-induced corrosion. The contoured, high-density polyurethane molded foam pads provide heavy-duty stabilization for the thighs and knees, ensuring the user remains firmly locked in place even when pulling maximum weight capacities.
Biomechanical superiority is central to the Keystone Series. The VST700PL33 allows lifters to move with a perfectly natural arc, eliminating the awkward, rigid tracking found in lesser machines. Because the arms are completely independent, users are prevented from compensating with their stronger side, promoting balanced muscle development and reducing injury risk. Precision sealed ball bearings at every rotational pivot point ensure an incredibly smooth, fluid pulling motion that feels flawless whether the machine is empty or fully loaded.
Features & Benefits
-
True Unilateral Arm Isolation: Left and right arms move independently of one another, allowing for single-arm lat pulldowns and helping athletes identify and correct left-to-right strength imbalances.
-
Four Integrated Olympic Storage Horns: Designed with heavy-duty, chrome-plated storage pegs on the rear frame, keeping your facility organized by storing multiple 50mm Olympic weight plates right where they are needed.
-
Low Starting Resistance: With an incredibly accessible initial arm resistance of just 3.7 kg (8 lbs), the machine is highly adaptable for rehabilitation patients, beginners, and maximum-capacity powerlifters alike.
-
Molded Polyurethane Support Pads: The durable, sweat-resistant thigh hold-down pads and seat are ergonomically shaped to comfortably lock the user’s lower body into the machine for absolute pulling leverage.
-
Instructional Insight Placards: Features high-contrast, easy-to-read visual guides strategically placed at eye level, displaying targeted muscle maps and step-by-step exercise execution for new users.
Specifications
-
Model Designation: VST700PL33 (Keystone Series)
-
Frame Structure: Heavy-gauge structural steel tubing with protective base guards
-
Resistance Setup: Plate-loaded architecture (Compatible with standard 50mm Olympic weight plates)
-
Adjustment Capability: Gas-spring assisted vertical seat adjustments with visual height indicators
-
Assembled Blueprint Dimensions (L x W x H): 168.8 cm x 162.3 cm x 195.5 cm (66.5″ x 63.9″ x 77″)
-
Starting Pull Resistance: 3.7 kg (8 lbs) per arm
-
Net Unit Weight: 147 kg (325 lbs) un-loaded
-
Maximum Structural Load Capacity: Rated for a maximum user weight of 150 kg (330 lbs) and an immense maximum training plate capacity of up to 300 kg (660 lbs)
Training Programs & Feedback
-
Maximum Back Hypertrophy: The diverging path of motion naturally pulls the elbows out and down, mimicking a perfect wide-grip pull-up to deliver maximum width and thickness to the latissimus dorsi.
-
Corrective Strength Balancing: By performing alternating or strictly single-arm pulls, users can effectively bridge functional strength gaps between their dominant and non-dominant sides.
-
Accommodating Variable Tension: Using the integrated base band pegs allows athletes to attach progressive resistance bands, dramatically increasing the resistance load at the bottom peak contraction of the pull.
