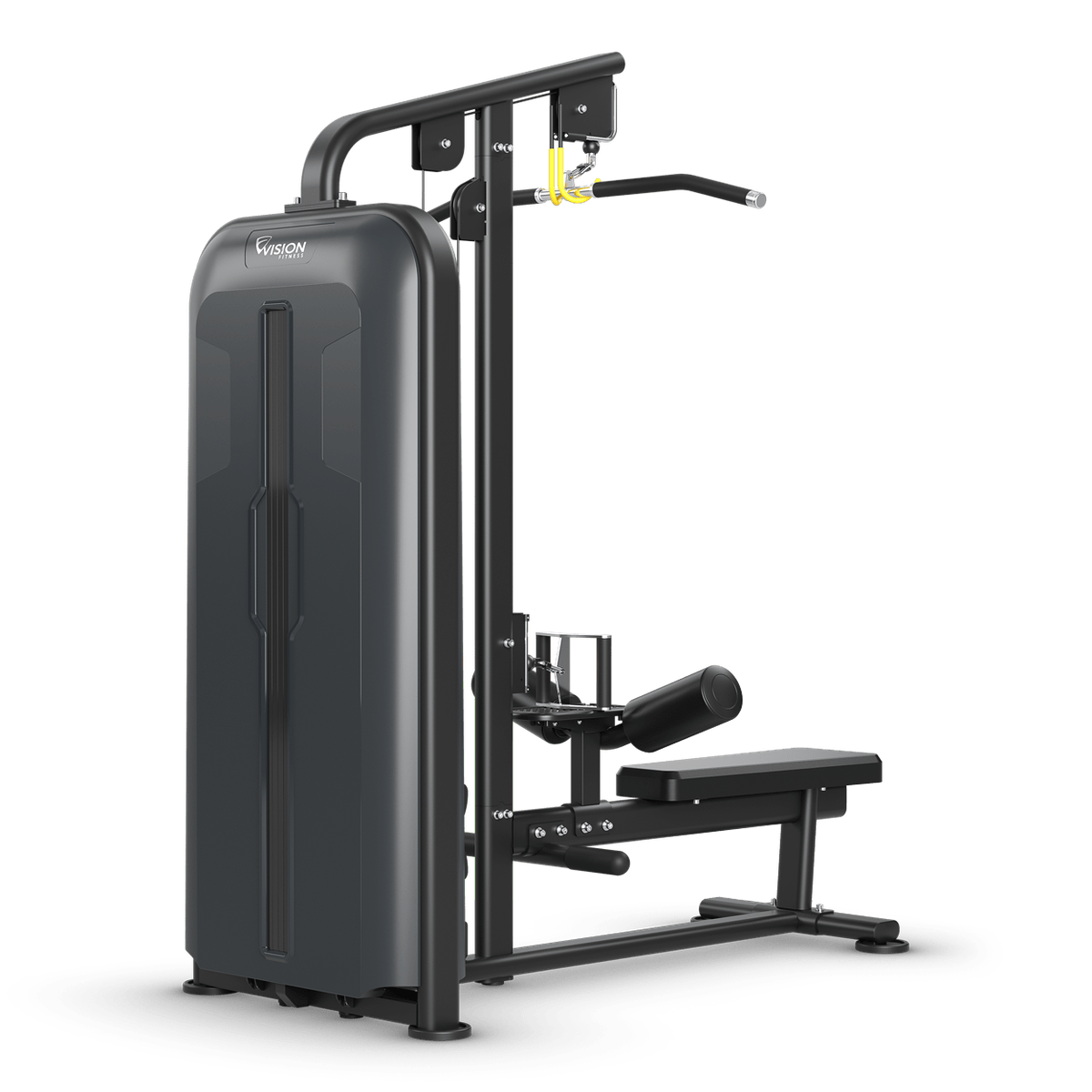

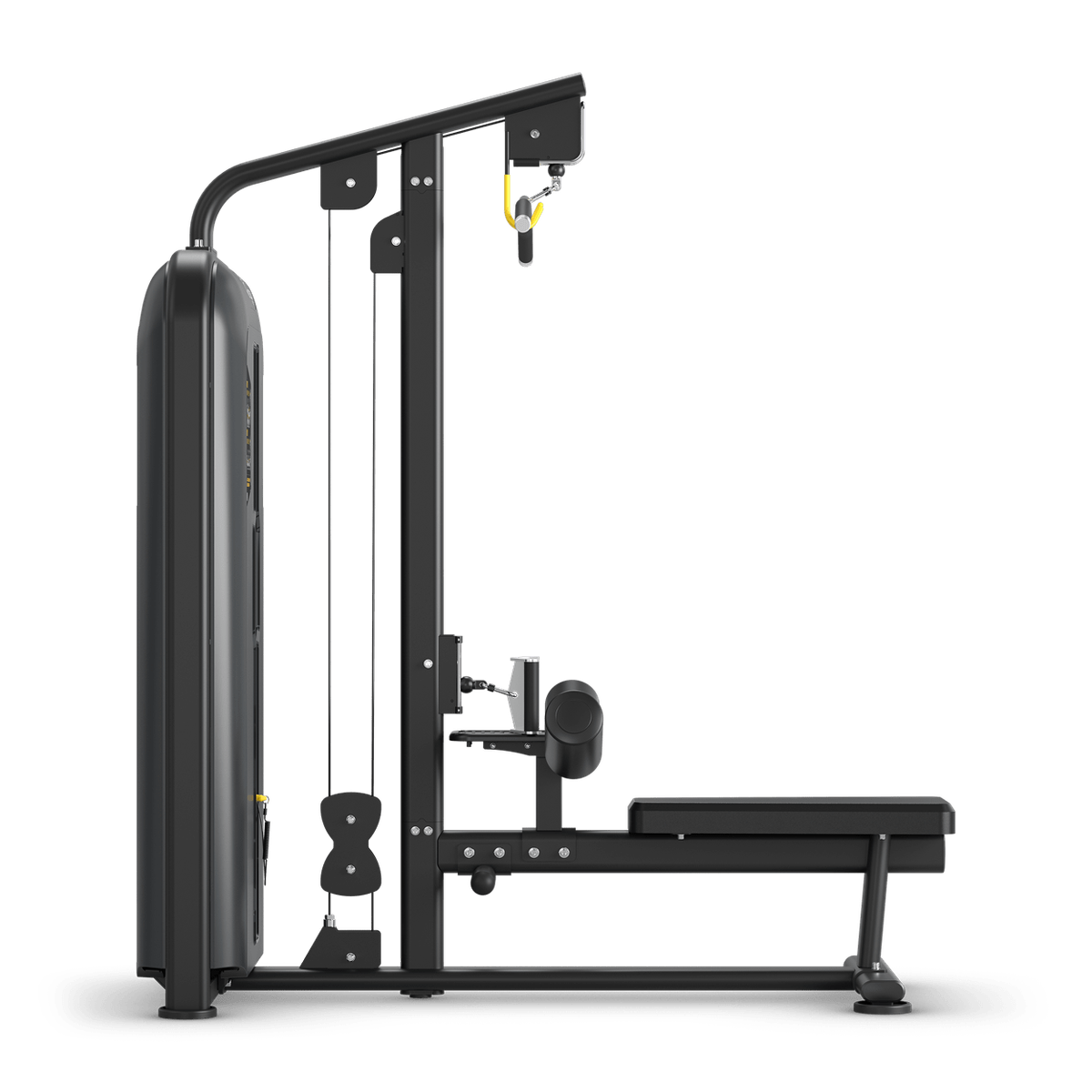

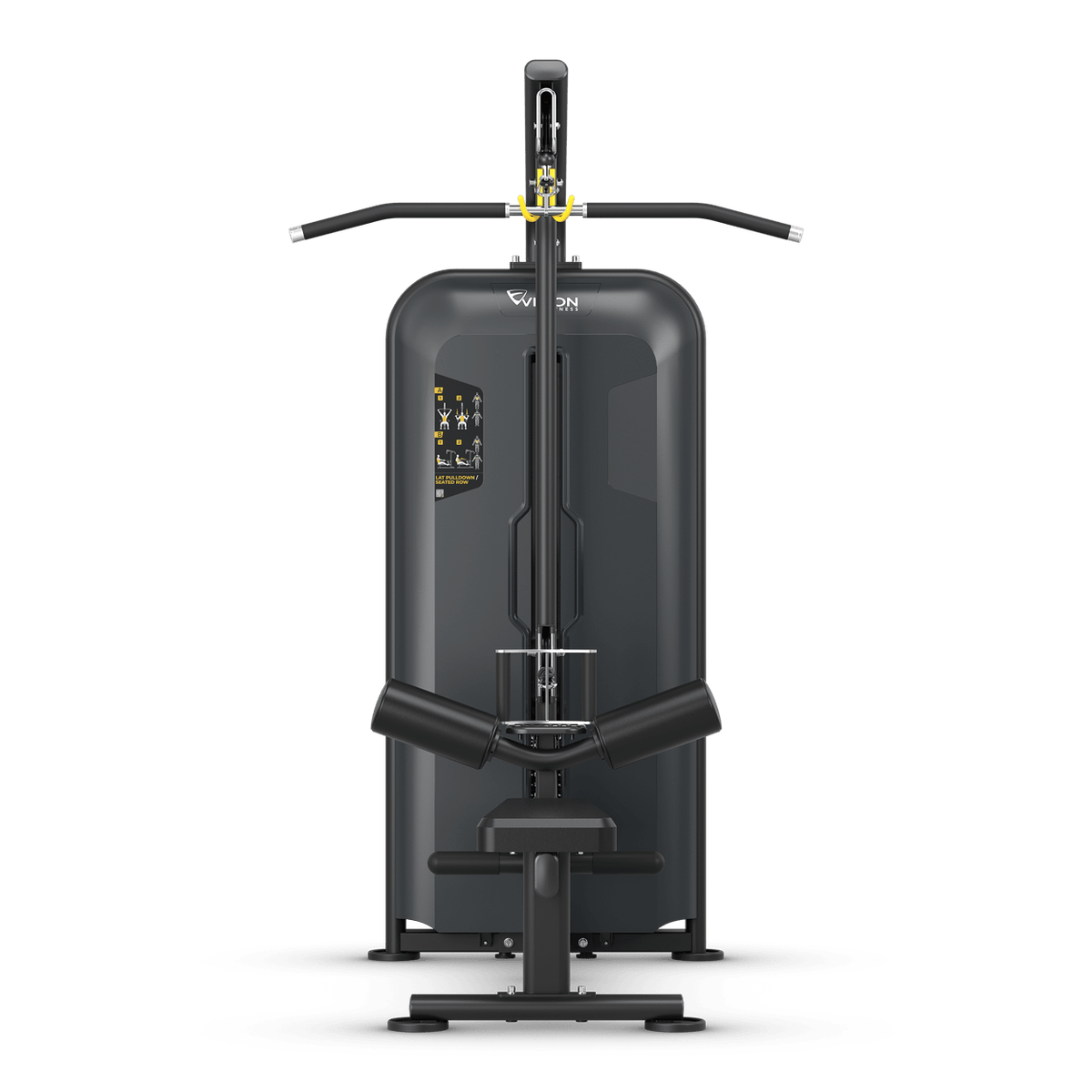

The Vision Access Series Lat Pulldown / Low Row (V-ACS-SL-331) offers gym operators a heavy-duty, commercial alternative to installing independent back training configurations. Built around an industrial-grade structural steel framework, the entire chassis is treated with a proprietary two-coat electrostatic matte black powder process that strongly shields against surface impacts, deep scratches, and sweat corrosion. The contoured, dense polyurethane molded foam seating and support elements are wrapped in double-stitched commercial vinyl upholstery, guaranteeing lasting durability under high daily member throughput.
Movement fluid integrity remains exceptional through every phase of the pull. The cable transmission architecture relies on internally lubricated, nylon-coated high-tensile steel lines that track flawlessly over fiberglass-impregnated nylon pulleys packed with sealed precision ball bearings. This ensures a frictionless, silent stroke that maintains consistent mechanical tension across the entire range of motion, letting users focus exclusively on back muscle contraction.
Features & Benefits
-
Intuitive Cable-Routing System: Multi-point pulley tracking lets users shift between vertical pulling and low row patterns without needing to re-thread cables or adjust complex leverage hooks.
-
Elevated Low-Row Foot Platforms: Integrated, textured steel footrests provide an angled, slip-resistant base that ensures a powerful bracing drive during heavy horizontal rows.
-
Full-Height Safety Guards: Full front and rear stack shrouds shield all internal moving plates, preventing accidental finger pinches and maintaining a quiet, uniform look on the strength floor.
-
Consistent Vertical Layout Height: Part of the uniform Access Series lineup, featuring a standardized visual stack height that helps fitness centers maintain a clean, organized, and matching line.
-
High-Contrast Coaching Placards: Placed at eye level, high-visibility placards display clean anatomical muscle highlights, clear step-by-step path lines, and a scannable QR code linking directly to video walkthroughs.
Specifications
-
Model Designation: V-ACS-SL-331 / VST600-S331 (Access Series)
-
Machine Type: Selectorized Dual-Function Lat Pulldown & Seated Row Station
-
Frame Structure: Robotically welded heavy-gauge structural steel frame with 4 built-in floor anchoring locations
-
Cable System: Internally lubricated, high-strength military-spec steel cables and fittings
-
Total Weight Stack Capacity: 100 kg (220 lbs) solid steel plates
-
Weight Plate Increments: 6.8 kg (15 lbs) per weight plate slice
-
Assembled Blueprint Dimensions (L x W x H): 120.5 cm x 201 cm x 215 cm (47.4″ x 79.1″ x 84.6″)
-
Net Unit Weight: 219 kg (482 lbs) including the internal weight stack
-
Maximum Occupant Capacity: Rated for a maximum user weight of 150 kg (330 lbs)
Training Programs & Feedback
-
Complete Latissimus Dorsi Development: Utilizing the overhead pulldown function isolates the outer lats, teres major, and lower biceps to improve upper-body width and pulling mechanics.
-
Mid-Back Thickness Row Workouts: Shifting to the low-row configuration allows lifters to brace hard against the steel foot platforms, directly overloading the rhomboids and middle trapezius.
-
Approachable Member Progression: Clear color-coded adjustments and a smooth 6.8 kg incremental plate stack make it incredibly simple for beginner gym members or rehab clients to establish proper form.
